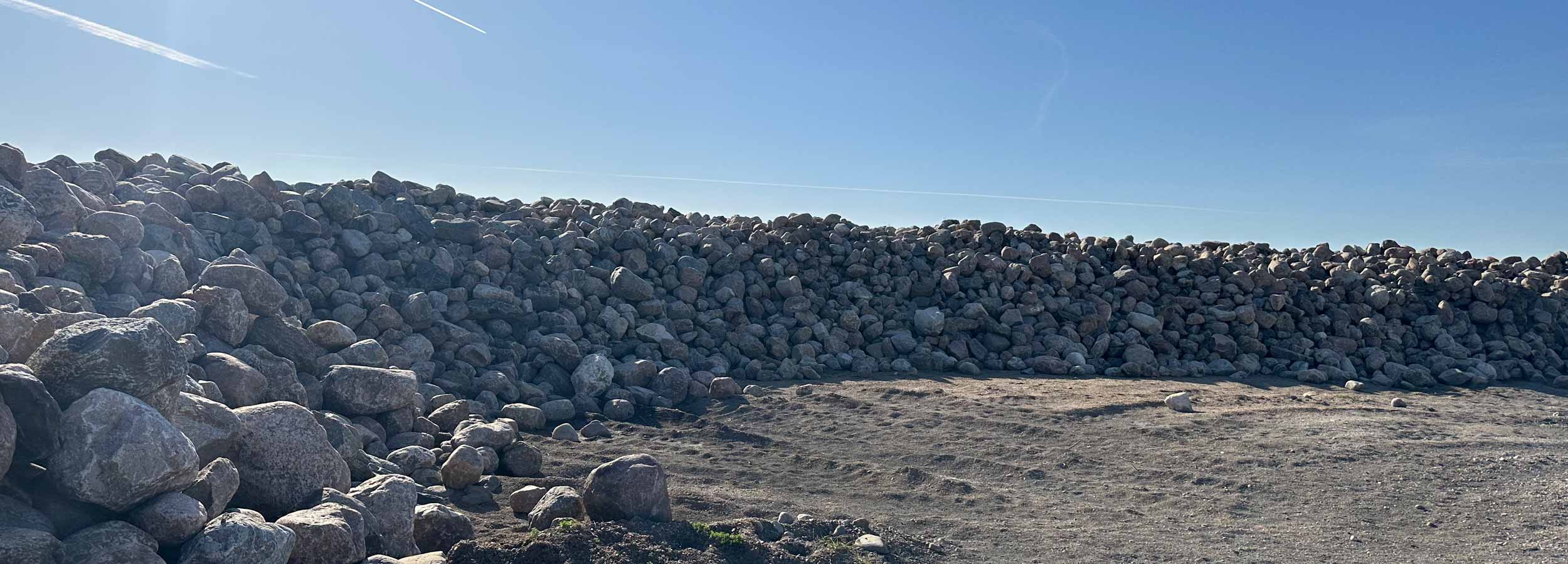

Large pile of rounded gray rip rap stones under a clear blue sky on a dirt ground.

Durable Rip rap Rock for Erosion Control Across Alberta

At GMS Aggregates, we supply high-quality rip rap rock for erosion control, slope stabilization, and infrastructure protection across Alberta. Our rip rap stone is strong, angular, and built to last. Ideal for industrial, environmental, and civil construction projects that demand dependable erosion protection.

Large pile of gray and brown riprap stones stacked on dirt under a cloudy sky with trees in the background.

What is Rip Rap?

Rip rap (also known as shot rock, rock armour, or rubble) is a layer of large, angular stones used to prevent soil erosion caused by water, ice, and weather. The interlocking rocks absorb and break up the force of water, protecting structures like bridge abutments, culverts, and slopes from damage.

In Alberta, rip rap plays a key role in land-based erosion control and infrastructure stability, especially around highways, bridge abutments, and drainage systems. Our province’s extreme freeze-thaw cycles and winter temperatures that often drop below -30°C can cause the ground to shift and crack, putting pressure on surrounding structures. Properly installed rip rap helps absorb these movements and stabilize the soil, protecting projects from long-term erosion and frost-related damage.

Large pile of irregularly shaped brown and gray rocks outdoors under a partly cloudy blue sky.
Large pile of round river rocks under clear blue sky with a white hard hat resting on the stones.

Common Uses for Rip Rap in Alberta

Rip rap is used throughout Alberta in a range of heavy-duty industrial, civil and environmental applications, including:

  • Armouring bridge abutments and retaining walls
  • Stabilizing slopes and drainage ditches
  • Lining culverts and stormwater outlets
  • Protecting creek beds and riverbanks from washout
  • Reinforcing construction sites and access roads prone to erosion
  • Other uses involve protecting shorelines and streambanks from erosion

Rip Rap Class Types & Use Cases

GMS Aggregates supplies a range of rip rap sizes and classes to meet the demands of different projects across Alberta. Available materials include granite, river rock, and fieldstone, depending on project requirements.

Class
Approx. Size
Common Uses
Class 4
Approx. Size
36 inches plus
/
Common Uses
High-energy water environments, major river systems, and critical infrastructure protection where maximum stability is required.
Class 3
Approx. Size
20–44 inches
/
Common Uses
High-energy water flow areas, steep slopes, bridge abutments, and severe erosion areas.
Class 2
Approx. Size
12–32 inches
/
Common Uses
General erosion control, culverts, creek banks, and retaining walls.
Class 1
Approx. Size
8–18 inches
/
Common Uses
Low- to moderate-flow areas, slope stabilization, and smaller infrastructure projects.
Class 1 M
Approx. Size
5–12 inches
/
Common Uses
Base layer beneath larger rip rap or for light-duty erosion control and grading applications.
Gabion
Approx. Size
4–8 inches
/
Common Uses
Gabion baskets and retaining wall systems where controlled stone size and drainage are important.

How Rip Rap Works

Rip rap protects soil and infrastructure by creating a natural barrier against erosion. Each stone is carefully placed so the rocks interlock, much like a puzzle, forming a stable surface that holds its ground under heavy conditions.
Key benefits include:

Erosion Control

Reduces soil loss by absorbing the energy of water and runoff.

Stability

Angular rock prevents shifting and provides long-term structural support.

Drainage

Allows water to filter through without displacing soil underneath.

Durability

Withstands extreme temperatures and water flow common in Alberta environments.

Frequently ASked Questions

Why is it called “rip rap”?

The term comes from nautical language. “Rip” refers to a stretch of rippling water, and “Rap” means to strike. Together, they describe how rip rap rock protects against the striking force of moving water.

What factors affect rip rap cost?

Price depends on rock type, volume, transport distance, and site accessibility. Larger or heavier materials typically cost more due to handling and delivery.

What are the types of rip rap rock?

The types of rip rap rock include:

  • Granite
  • Limestone
  • River rock
  • Fieldstone
  • Modular concrete blocks

Order Rip Rap in Alberta

GMS Aggregates supplies rip rap for projects of all sizes, from municipal infrastructure to private development. We’re proud to support Alberta industries with locally sourced, high-quality rock that performs under pressure. Contact us today for rip rap pricing, availability, or custom quotes.
